Min. I-oda:1 Piece/Pieces

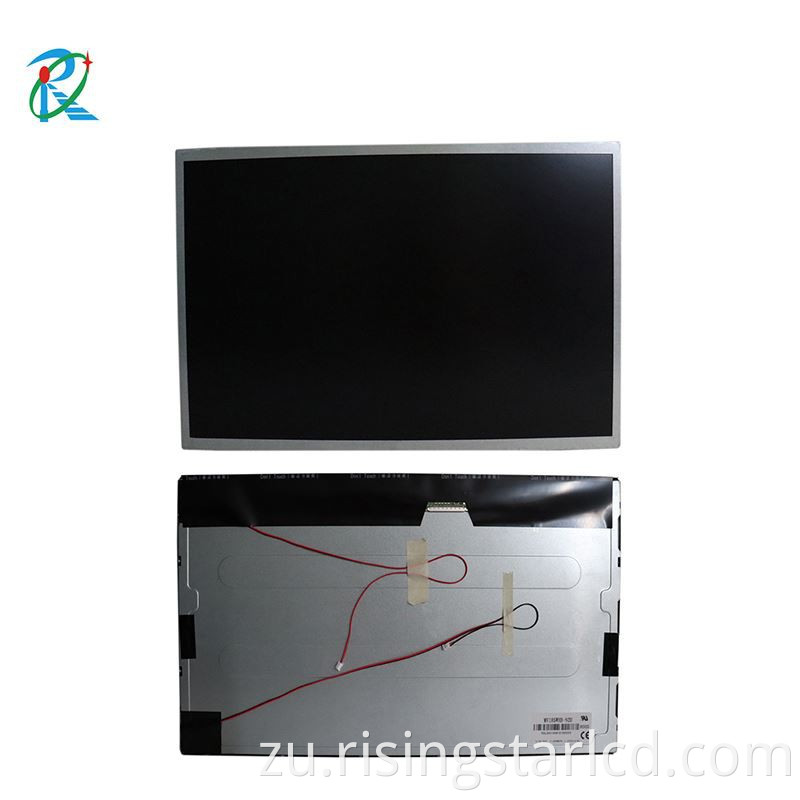

Imodyuli eyi-1000 ye-LCD ye-LCD enebhodi lomshayeli, usayizi wemodyuli 13.3inch, le module, le module ingumbala osebenzayo we-matrix lcd module Ukufaka i-oxide tft (amafilimu amancane). Iphasiwedi yephaneli ye-TFT-LCD yombala we-TFT-LCD, umshayeli we-Driver ICS, umjikelezo wokulawula kanye ne-Power Supply Circuit.Resuule 1920 * 1080.

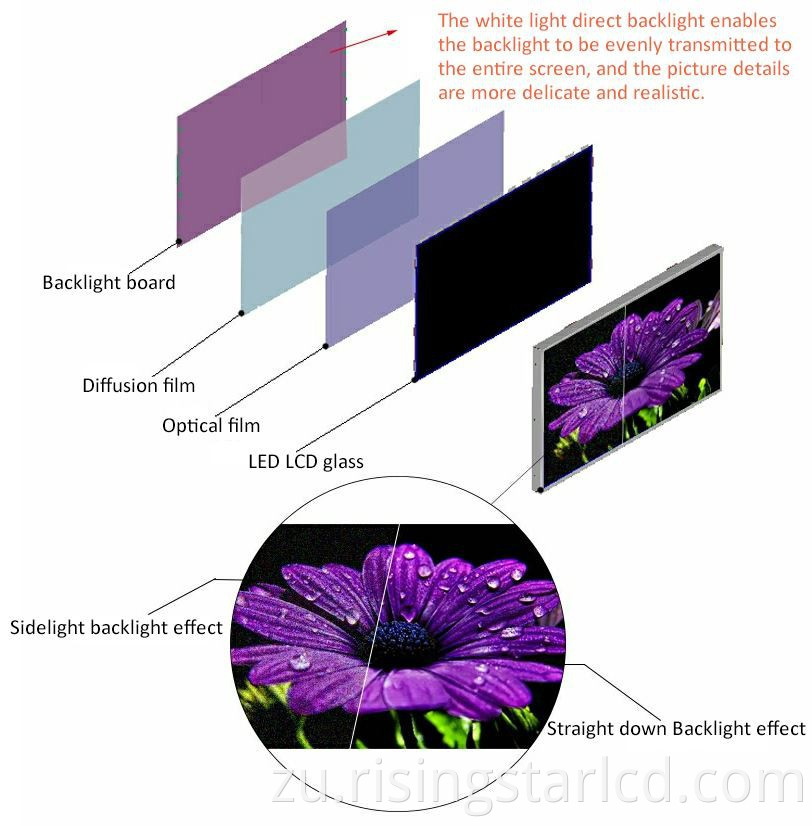

Ku-1000nits LCD Module, i-LED Side-Instlight Backlight, izihlungi zemibala zombala omuhle kakhulu zifakwa ukuze zibone isithombe esikhanyayo nesicacile, okwenza le modeli Optimum isetshenziswe ezinhlelweni eziningi zemidiya.
I-LED Backlight isebenza kahle kakhulu amandla futhi ihlinzeka ngesithombe esikhanyayo kunezimpawu zendabuko ze-CCFL; ngenxa yemvelo ethosiwe ye-LEDS kanye nesakhiwo se-modul sokwehla, isibonisi sivame ukuncipha; Hhayi amandla amaningi asebenza kahle kunezilimo ze-CCFL zendabuko, nazo zikhanya impela.
| Size | 13.3inch |
| Panel item | RS133NET-N10 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1920*1080 |
| brightness | 1000cd/m2 |
| Constrast Ratio | 800：1 |
| Response Time | 25ms |
| View angle | 89/89/89/89 |
| View area | 295.07*166.68mm(H*V) |
| Dispaly area | 293.472*165.078mm(H*V) |
| Outline Size | 309.7*184.1*10.1mm(H*V*D) |
| Signal Type | LVDS,30Pin |
| Working freqyency | 60Hz |
| Working temperature | 0- 70ﾟC |
| Storage Temperature | -25- +65.0ﾟC |
| Display ratio | 16:9 |
| Display color | 16.7m |
| Nominal Input Voltage | 3.3V |
| Surface Treatment | Haze |
| Weight |
0.5kgs |
Amathegi ashisayo: Imodeli ye-LCD eyi-1000 ye-LCD enebhodi yomshayeli, China, efektri, eshibhile, inani eliphakeme, i-LCD Screen, isikrini se-LCD ephezulu, isikrini esiphakeme se-LCD, imichilo ephezulu ye-LCD, imichilo ephezulu ye-LCD, strip I-LCD Display , Iphaneli ye-LCD, imodyuli ye-LCD, isibonisi esiphakeme kakhulu.
