Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Min. I-oda:1 Piece/Pieces
Ibhulogi: Ringlcd
Ukukhiqiza: 12500
Indawo Yomsuka: Shenzhen
Isitifiketi: CE/ROSH/ISO9001/UL

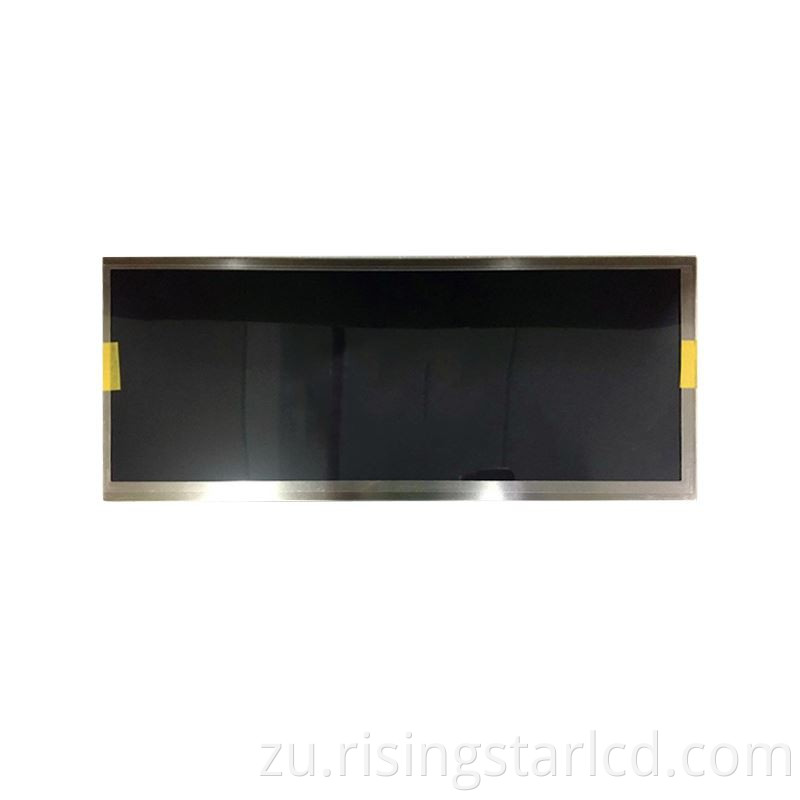

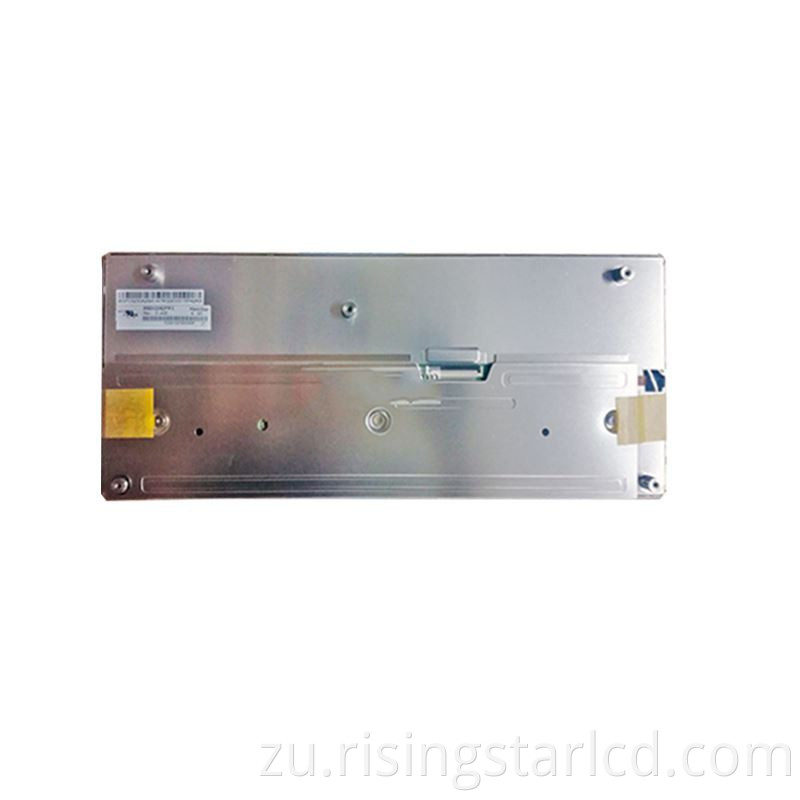

I-Shenzhen RisingStar 1000 NIT LCD Panel 12.3inch LCD Screen.With LVD interface screen high ukugqama okuphezulu okungu-1000, ilanga lifundeka. Leli phaneli le-LCD le-LCD yiphaneli ye-LCD yezimboni, lokushisa elisebenzayo -30 ~ 85 ℃ .Ukumelana nokuvinjwa kwe-LCD yi-2.9G (28.4m / S2), okusetshenziselwa kakhulu ukuboniswa kwemoto / ngebhasi.
| Size | 12.3inch |
| Panel item | RS123NET-N10 |
| Panel type | a-Si TFT-LCD |
| Display mode | Normally black |
| Pixels | 1920*720, 167PPI |
| brightness | 1000cd/m2 |
| Constrast Ratio | 1000：1 |
| View angle | 85/85/85/85 |
| Dispaly area | 292.032*109.512mm(H*V) |
| Outline Size | 308.1*130.7.6mm(H*V*D) |
| Signal Type | LED |
| Working freqyency | 60Hz |
| Working temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| Display ratio | 8:3 |
| Display color | 16.7m |
| Supply Voltage | 3.3V |
| Single interface | LVDS (2ch,8-bit),50 pin |
| Weight | 0.52kgs |
Amathegi ashisayo: I-1000 nit LCD Panel 12.3 inch, China, efektri, eshibhile, inani le-LCD, i-LCD ye-LCD, i-LCD ye-Brightness TFT LCD, i-TV yangaphandle, isikrini se-TV ngaphandle , Iphaneli ye-LCD, imodyuli ye-LCD, isibonisi esiphakeme kakhulu.
Isikrini se-LCD esincanyana se-TV ngaphandle
Isikrini Esiphezulu se-LCD Outdoor
