Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Min. I-oda:1 Piece/Pieces
Ibhulogi: Ukucisha
Ukukhiqiza: 180K
Indawo Yomsuka: Shenzhen
Isitifiketi: CE/ROSH/ISO9001
| Panel Brand | RISINGSTAR | Panel Model | RS190ETN-GE10 |
| Panel Size | 19" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024 [SXGA] 86PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 376.32(H)×301.056(V)mm | Surface | Antiglare, Hard coating (3H) |
| Outline Size | 396(H)×324(V)×11.7(D)mm | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Brightness | 1000nit or customized | Display Mode | TN, Normally White, Transmissive |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Response Time | 3/7 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC | Lamp Type | WLED[12S4P],30K hours , W/O Driver |
| Weight | 1.80Kgs | Frequency | 60Hz |
| Signal Interface | LVDS (2 ch, 8-bit) 30 pins Connector | Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C | ||
I-LCD ye-LCD efundeka ka-19-intshi efundwayo inikwa amandla yi-LED backlight array enamandla ngokukhanya kwe-1000cd / m2. Lesi sibonisi silungele izindawo zangaphandle, noma izinhlelo zokusebenza ezinezimo eziphakeme ezikhanyayo ezifana nezimpawu zeselula, zasolwandle noma zedijithali. Ngokwamukela ubuchwepheshe bamuva be-LED backlight, akusizi nje kuphela ukukhulisa isikhathi sokuphila komkhiqizo, kepha futhi kusiza ukunciphisa amazinga wokusebenzisa amandla, okusiza ukukhiqiza ukushisa okuphezulu kwe-CCFL CCLLLINE. Kunzima ukufeza.
I-19 "ukukhanya kwelanga okufundwayo, ukugqama okuphezulu (ama-nits ayi-1 000)
I-RS1900ETN-GE10 isebenzisa i-19-inch 1920x1080 Panel ephelele ye-HD, isilinganiso esingu-1000: 1, futhi isekela ukufakwa kwe-HDMI, i-DVID, kanye ne-VGA. Izindlu zensimbi ezigoqiwe zokusebenza okuqhubekayo okungu-24/7

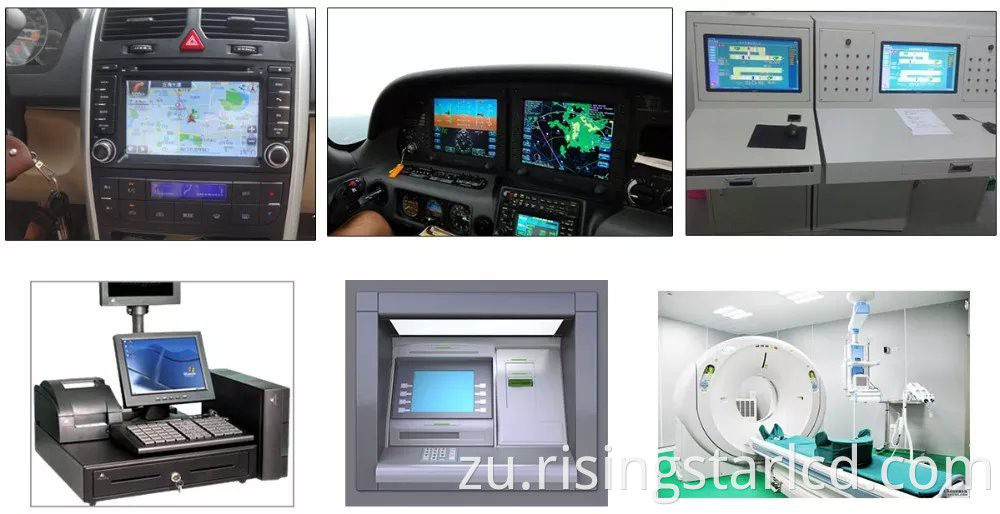

Izicelo: Ukuhlolwa / ukubhekwa kwemigqa yokukhiqiza efektri, izikhungo zemfundo, imibukiso nemicimbi, imibukiso, ukungqubuzana kwevidiyo, ukubhekwa, ukubhekwa kwedijithali noma njengengxenye ye-OEEM ehlanganiswe komunye umkhiqizo.
Izici
1. Qokomisa
Ebusheni obuqondile, kuhlala kukhanya futhi kucacile, kunikeza isithombe esihle kakhulu esinaka amaklayenti angaba khona.
2. Ukushisa okubanzi (-30 ° C ~ 85 ° C)
Ukumelana kwamazinga okushisa okuphezulu nokwephansi, kusetshenziswa i-crystal ekhethekile yokushisa ekhethekile, izinga lokushisa eliphakeme kakhulu lingafinyelela ama-degrees angama-110, okuyizinga eliphakeme kakhulu embonini, elingavimba into yamabala amnyama esikrinini esisezingeni eliphakeme.
3. Ukulungiswa kokukhanya okukhanyayo
Isibonisi singalungisa ngokuzenzakalelayo ukugqama ngokuya ngemvelo ngokusebenzisa inzwa yokukhanya esethelwe ngaphakathi, ukukhulisa ukukhanya kwesikrini lapho imvelo igqamile, futhi yehlisa ukukhanya kwesikrini lapho imvelo imnyama.
4.24 / 7 Ukusebenza okuqhubekayo nokuthembekile
Q: Ngingakwazi ukuthenga isampula nge-oda lami?
A: Yebo, sicela ukhululeke ukuxhumana nathi.
Q: Singaqinisekisa kanjani ikhwalithi?
A: Ukuhlolwa kokugcina njalo ngaphambi kokuthunyelwa;
Q: Yiziphi izinzuzo zethu?
A: Intengo ephansi yekhwalithi ephezulu, imininingwane yokulandela ngesikhathi.
Q: Ngabe iwaranti isikhathi esingakanani?
A: Sinikeza iwaranti yonyaka owodwa kusukela ngosuku lokulethwa.
Q: Ngabe uyinkampani yokuhweba noma umenzi?
A: Siyimboni.
Q: Yimiphi imigomo yakho yokukhokha?
A: Ukukhokha <= 1000usd, 100% kusengaphambili. Ukukhokha> = 10000USD, 50% T / T kusengaphambili, ibhalansi ngaphambi kokuthumela.
Amathegi ashisayo Iphaneli, isikrini sokuboniswa kwangaphandle , i-LCD Panel, imodyuli ye-LCD, isibonisi esiphakeme kakhulu.
19 inch 1000nit Outdoor LCD isibonisi sokubonisa
I-18.5 inch 1000nit Outdoor LCD Isibonisi sokubonisa
