Min. I-oda:1 Piece/Pieces
Ibhulogi: Ringlcd
Ukukhiqiza: 160K
Indawo Yomsuka: UShen Zhen
Isitifiketi: CE/ROSH/UL/ISO9001

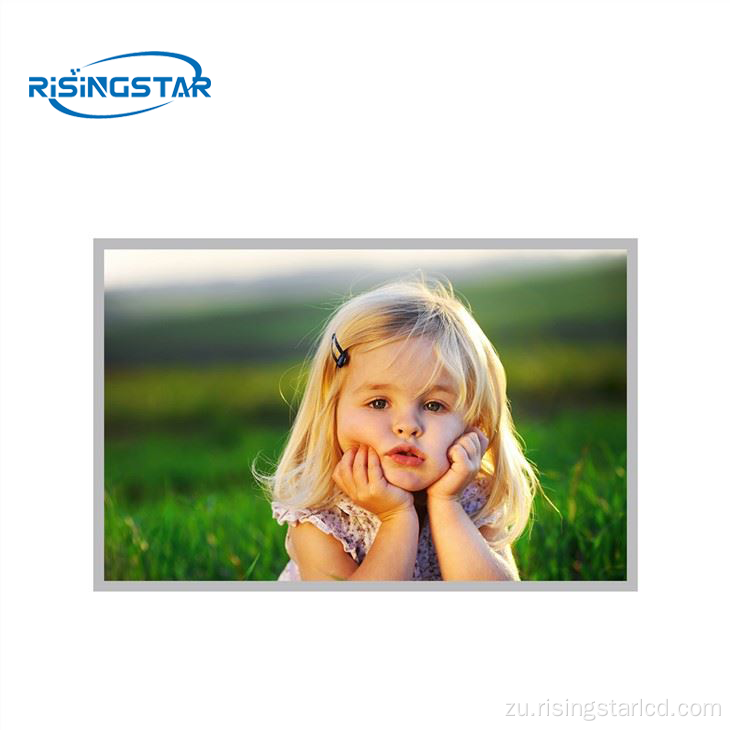

| Panel Brand | RISINGSTAR | Panel Model | RS220WPM-NE10 |
| Panel Size | 22.0" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 90PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76(W)×296.1(H) mm | Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H) ×10.7(D) mm | Surface | Antiglare (Haze 25%), Hard coating(3H) |
| Brightness | 1000nit or customized | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Display Colors | 16.7M 72% NTSC | Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Frequency | 60Hz | Lamp Type | 3 strings WLED , 40K hours , Without Driver |
| Weight | 1.83Kgs (Typ.) | Input Voltage | 5.0V (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C | ||
I-RS220WPM-NE1Light Sunn ukukhanya kwelanga i-LCD isiboniso esekela isikhombimsebenzisi se-LVDS. Ingasebenza emazingeni okushisa kusuka ku-2020 ~ 70 ℃ kanye namazinga okushisa okugcina kusuka ku--30 ~ 80 ℃. I-RS220WPM-NE10 iyi-1000 Nits High Brightness TFT LCD module. Ilungele imishini yezimboni, amadivaysi aphathwayo, imishini yezokwelapha, indawo yangaphandle neyangaphandle.
Izici
1. Ukukhanya okuphezulu, umehluko omkhulu, isikhathi sokuphendula okusheshayo, ukwesekwa okunemibala eminingi, i-angle ebanzi;
2. Umugqa Wokukhiqiza Ojwayelekile Kazwelonke, izigidi zemvelo engenalo uthuli, umzimba wesikrini kanye nesikrini se-LED;
3. Isitifiketi, i-FCC, CE, CCC, ul, Rofs;
4. Ubuchwepheshe obukholwayo be-Led Backlight.
5. Ukwakheka okuqinile, umthelela olwangaphandle, i-metal chassis.
1. Professional Outdoor High Brightness Lockness LCD Panel Makhiqiti
2. Isikrini esiphakeme se-LCD esiphakeme, singamelana namazinga okushisa aphezulu ayi-110
3. Samsung, LG, Beo, AUO, InCOLUX izinkampani ezisebenza naye
4. ukukunikeza ngokubonisana kanye nokuholwa kwezobuchwepheshe
Q: Ngingakwazi ukuthenga isampula nge-oda lami?
A: Yebo, sicela ukhululeke ukuxhumana nathi.
Q: Singaqinisekisa kanjani ikhwalithi?
A: Ukuhlolwa kokugcina njalo ngaphambi kokuthunyelwa;
Q: Yiziphi izinzuzo zethu?
A: Intengo ephansi yekhwalithi ephezulu, imininingwane yokulandela ngesikhathi.
Q: Ngabe iwaranti isikhathi esingakanani?
A: Sinikeza iwaranti yonyaka owodwa kusukela ngosuku lokulethwa.
Q: Ngabe uyinkampani yokuhweba noma umenzi?
A: Siyimboni.
