Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Min. I-oda:1 Piece/Pieces

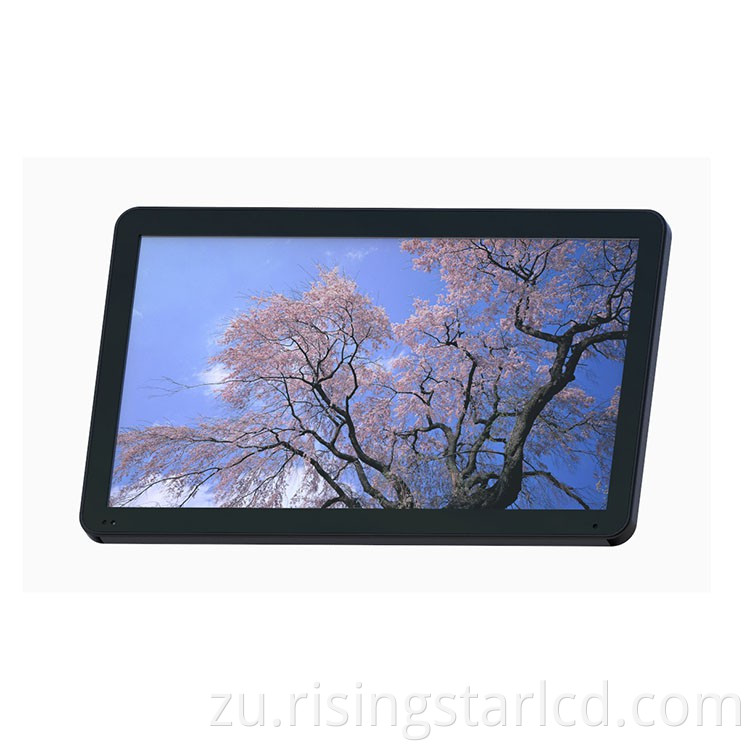

| Panel Brand | RISINGSTAR | Panel Model | RS236ZX-NE15 |
| Panel Size | 23.6″ | Panel Type | a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080, FHD 47PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 544.8(W)×320.5(H) mm | Bezel Opening | / |
| Outline Size | 577.8(W)×357.6(H)×52.2(D) mm | Surface | Antiglare (Haze 3%), Hard coating (2H) |
| Brightness | 1500 cd/m²or customized | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AMVA3, Normally Black, Transmissive |
| Display Colors | 16.7M | Response Time | 6 (Typ.)(G to G) |
| Frequency | 60Hz | Input Voltage | 12V (Typ.) |
| Backlight type | WLED | Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Environment | Operating Temp.: -30 ~ 105 °C ; Storage Temp.: -40 ~ 110 °C | ||
Ngokukhuphuka kwemibukiso yedijithali, ubuchwepheshe bokukhahlela okuholayo buye bathandwa kakhulu kumaphaneli e-LCD. I-LED baclighting inikeza ukukhanya okuphezulu kanye namazinga okuhluka, ukusebenza kahle kwamandla, kanye nesikhathi sokuphila eside ngokuqhathaniswa nokukhanya kwendabuko kwe-fluorescent.
Enye yezinzuzo eziphambili ze-LED baclighting yikhono layo lokuhlinzeka ngohlobo olubanzi lwe-gamut yemibala kanye nezinketho zokushisa kombala. Lokhu kuphumela ekukhiqizweni kombala okunembe kakhudlwana futhi okusebenzayo, okwenza ama-LCD we-Backlit LCD alungele izinhlelo zokusebenza ezidinga ukunemba kombala okuphezulu, njengezinkundla zemidlalo ye-movie kanye nama-studios we-Graphic Design.
I-LED baclighting iphinde inikeze amandla athuthukisiwe amandla okuqhathaniswa nokukhanya kwendabuko kwe-fluorescent. Ngokusebenzisa amandla amancane, izikrini ze-LED backlit LCD zingasiza ukunciphisa izindleko zamandla futhi zehlise i-carbon footprint yohlelo lokubonisa. Enye inzuzo ebalulekile yokubukwa okuholwa okuholwayo yisikhathi sayo eside sokuphila. Izikrini ze-Backlit ezisuselwa ku-LCD zinesikhathi sokuphila esifinyelela kumahora afinyelela kwayi-100,000, okukude kakhulu kunokukhanya kwendabuko kwe-fluorescent. Lokhu kubenza babize kakhulu futhi banciphise isidingo sokufaka okunye esikhundleni. Amaphaneli e-Backlit LCD asetshenziswa kabanzi ezimbonini ezahlukahlukene, kufaka phakathi ukunakekelwa kwezempilo, imidlalo, ukuthengisa, ukuthengisa kanye nokuzijabulisa. Zivame ukusetshenziswa kwizimpawu zedijithali, imishini yezokwelapha, imishini yokudlala, kanye nemibukiso yezimoto ngenxa yokukhanya kwawo okuphezulu, ukusebenza kahle kwamandla, nokuzala kabusha okunembile.
Amathegi ashisayo: 23.6 Inch Dled Backlight High Brightness Brightness Lockness LCD Panel, China, Facton Screens UK, isikrini esingu-1000 se-LCD Uk, isikrini esingu-21 5 i-ITSOOR, isibonisi Izikrini, isikrini esingu-15 4 esingaphandle se-LCD , i-LCD Panel, i-LCD module, isibonisi esiphakeme kakhulu.
